ROUND FORMWORK COLUMN DONATION

Our new ECO round formwork is a state-of-the-art design that provides several advantages while serving the same Formwork purpose. The Formwork consists of a single steel sheet, which makes it a lightweight steel panel that can be carried by two workers without the need for a crane.

​

The side frame is consisting of a flat bar to form an upright angle to the sheet. The flat bar will be used to join the two halves of the round column using the side holes.

​

The upper and lower frame consists of a curved flat bar. Optionally, the flat bar can have several holes which vary based on the panel size. These holes are used for cascading the panels vertically to meet the desired height of the columns and walls.

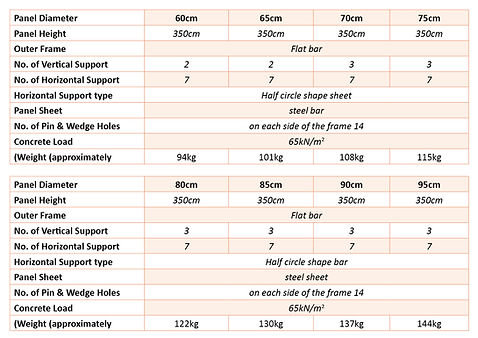

For every 50cm, there are horizontal belts made of curved flat bars to provide additional support to the panel. There are a total of 7 horizontal belts in every 350cm panel height. Additionally, at least one Flat Bar vertical support will be included in each panel, the number of flat bars increased based on the panel sizes. We can meet your project-specific heights, as our panel can be fabricated in the range of 100-400cm.
